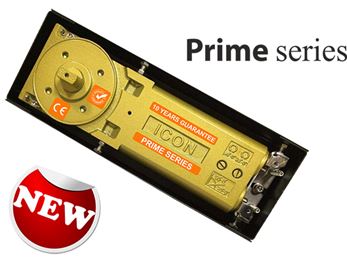

ICFH-1200
Double Cylinder Floor Hinge
Maximum bearing weight-90-120kgs
Specification
- Over 10,00,000 cycles tested.
- General design, suitable for left or right hand to open the door in single and both sides.
- Universal machine cylinder.
- Closing force-25nm.
- Maximum wide door leaf-1100mm.
- Maximum bearing weight -90-120Kgs.
- Speed covering control-two stage adjustable speed.

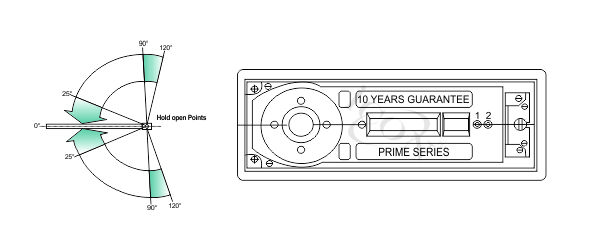

- Location-90° hold open.
