Floor Hinge

  Product Detail

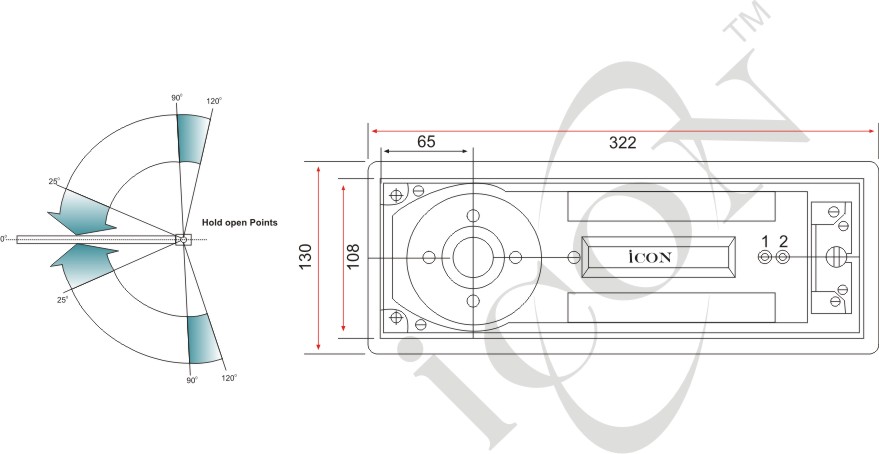

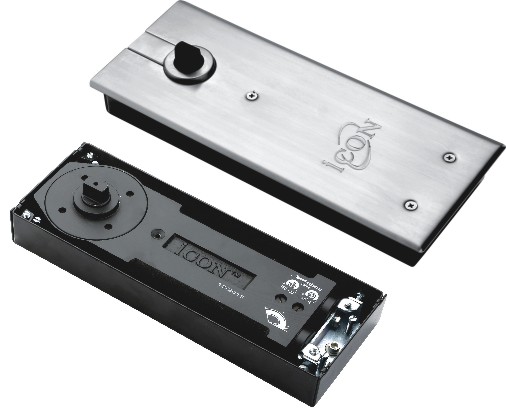

Product Code : ICFH-1200

Double Cylinder Floor Hinge
Maximum bearing weight-90-120kgs

Specification

• Over 10,00,000 cycles tested.
• General design, suitable for left or right hand to open the       door in single and both sides.
• Universal machine cylinder.
• Closing force-25nm.
• Maximum wide door leaf-1100mm.
• Maximum bearing weight -90-120Kgs.
• Speed covering control-two stage adjustable speed.

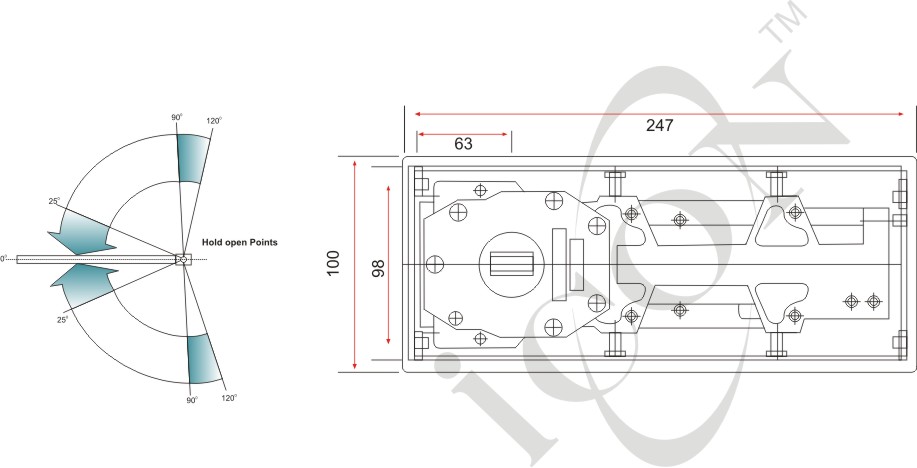

• Location-90° hold open.

Full Product Details

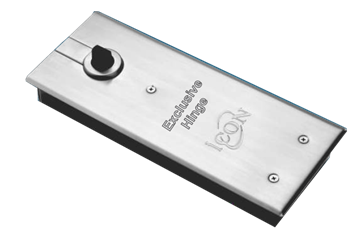

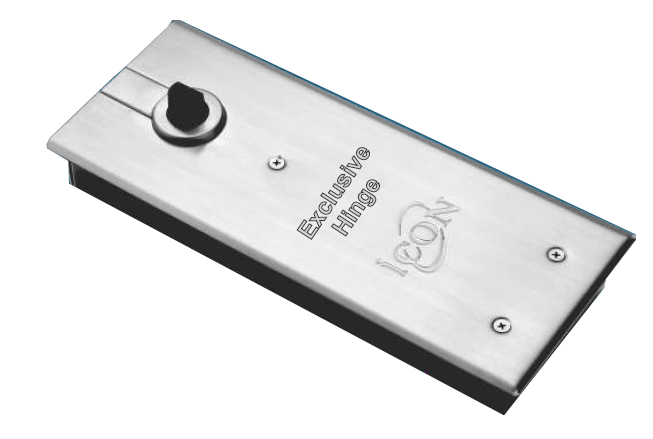

Product Code :  ICFH-8600EH

Double Cylinder Floor Hinge
Maximum bearing weight-90-120kgs

Specification

  • Over 500,000 cycles tested.
  • General design, suitable for left or right hand to open the door in single and both sides.
  • Universal machine cylinder.
  • Closing force-35nm.
  • Maximum wide door leaf-1250mm.
  • Maximum bearing weight -270Kgs.
  • Speed covering control-two stage adjustable speed.

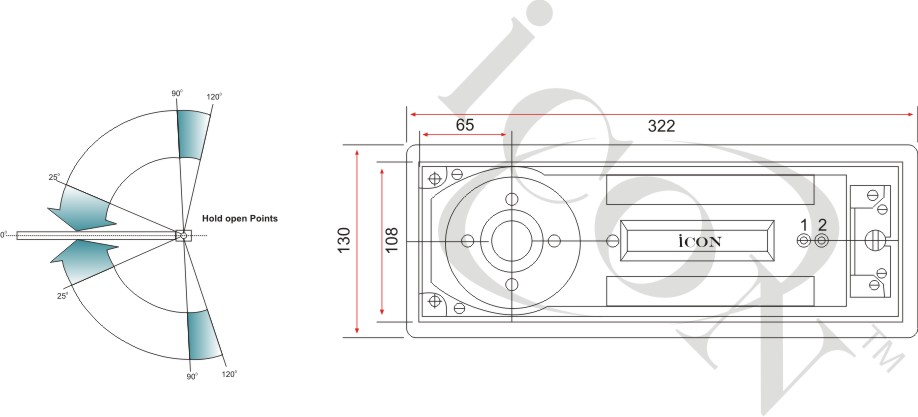

  • Location-90° hold open.

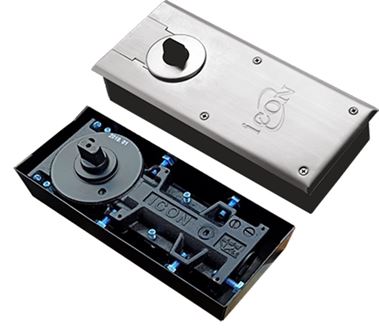

Product Code :  ICFH-777

Single Cylinder Floor Hinge
Maximum bearing weight-55kgs

   Specification

  • Over 500,000 cycles tested.
  • General design, suitable for left or right hand to open the door in single and both sides.
  • Universal machine cylinder.
  • Closing force-15mm.
  • Maximum wide door leaf-900mm.
  • Maximum bearing weight -55Kgs.
  • Speed covering control-two stage adjustable speed.
  • Location-90° hold open.

Full Product Details

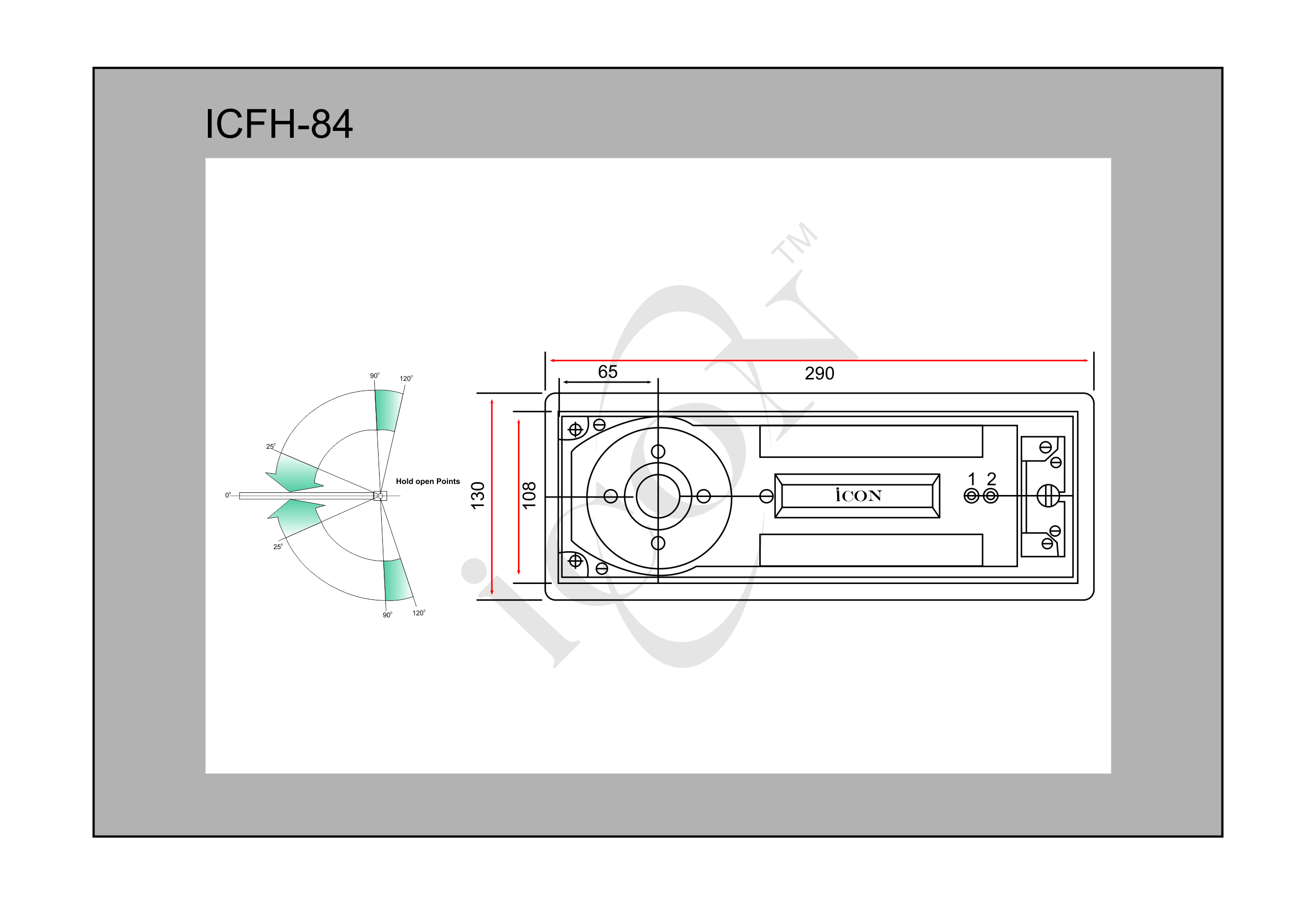

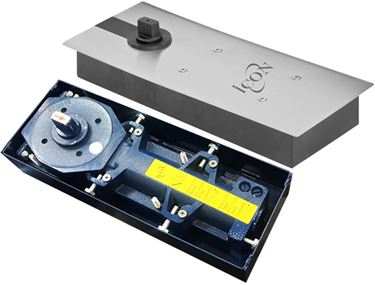

 Product Code :   ICFH-84

Single Cylinder Floor Hinge
Maximum bearing weight-90kgs

  Specification

  • Over 500,000 cycles tested.
  • General design, suitable for left or right hand to open the door in single and both sides.
  • Universal machine cylinder.
  • Closing force-15nm.
  • Maximum wide door leaf-900mm.
  • Maximum bearing weight -90Kgs.
  • Speed covering control-two stage adjustable speed.
  • Location-90° hold open.

Full Product Details


Product Code : ICFH-7400

Double Cylinder Floor Hinge
Maximum bearing weight-70kgs

   Specification

  • Over 500,000 cycles tested.
  • General design, suitable for left or right hand to open the door in single and both sides.
  • Universal machine cylinder.
  • Closing force-20nm.
  • Maximum wide door leaf-1100mm.
  • Maximum bearing weight -65Kgs.
  • Speed covering control-two stage adjustable speed.
  • Location-90° hold open.

Full Product Details


Product Code :  ICFH-8400

Double Cylinder Floor Hinge
Maximum bearing weight-90kgs

   Specification

  • Over 500,000 cycles tested.
  • General design, suitable for left or right hand to open the door in single and both sides.
  • Universal machine cylinder.
  • Closing force-25nm.
  • Maximum wide door leaf-1100mm.
  • Maximum bearing weight -90Kgs.
  • Speed covering control-two stage adjustable speed.
  • Location-90° hold open.

Full Product Details

Product Code :  ICFH-9400

Double Cylinder Floor Hinge
Maximum bearing weight-150kgs

   Specification

  • Over 500,000 cycles tested.
  • General design, suitable for left or right hand to open the door in single and both sides.
  • Universal machine cylinder.
  • Closing force-35nm.
  • Maximum wide door leaf-1250mm.
  • Maximum bearing weight -150Kgs.
  • Speed covering control-two stage adjustable speed.
  • Location-90° hold open.

Full Product Details

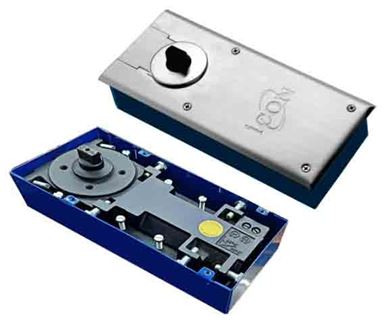

Product Code :  ICFH-10400

Single Cylinder Floor Hinge
Maximum bearing weight-270kgs

   Specification

  • Over 500,000 cycles tested.
  • General design, suitable for left or right hand to open the door in single and both sides.
  • Universal machine cylinder.
  • Closing force-35nm.
  • Maximum wide door leaf-1250mm.
  • Maximum bearing weight -270Kgs.
  • Speed covering control-two stage adjustable speed.
  • Location-90° hold open.

Full Product Details

Product Code :   ICFH-8200

Double Cylinder Floor Hinge
Maximum bearing weight-90kgs

Specification

  • Over 500,000 cycles tested.
  • General design, suitable for left or right hand to open the door in single and both sides.
  • Universal machine cylinder.
  • Closing force-25nm.
  • Maximum wide door leaf-1100mm.
  • Maximum bearing weight -90Kgs.
  • Speed covering control-two stage adjustable speed.
  • Location-90° hold open.
