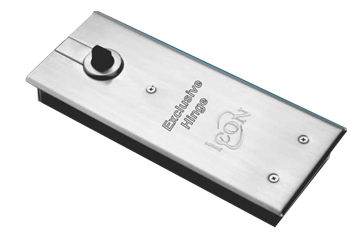

ICFH-8600 EH

Double Cylinder Floor Hinge
Maximum bearing weight-90-120kgs


  • Over 500,000 cycles tested.
  • General design, suitable for left or right hand to open the door in single and both sides.
  • Universal machine cylinder.
  • Closing force-35nm.
  • Maximum wide door leaf-1250mm.
  • Maximum bearing weight -270Kgs.
  • Speed covering control-two stage adjustable speed.
  • Location-90° hold open.
